Schraubenkompressoren HGS 2-15

Schraubenkompressoren HGS 2-15

Zusammenfassung des Produktkatalogs
Technische Spezifikationen und Abmessungen
Einleitung: Diese Dokumentation bietet eine Übersicht über die technischen Daten und Abmessungen der HGS 2-15 Tank Mounted Serie. Die Spezifikationen können ohne vorherige Ankündigung geändert werden. 60 Hz Versionen sind auf Anfrage erhältlich.
Leistungsdaten:
  • Verfügbare Modelle: HGS 2, HGS 3, HGS 4, HGS 5.5, HGS 7.5, HGS 11, HGS 15
  • Leistung (kW/Hp): 2.2/3.0 bis 15/20
  • Kapazität (L/min): 250 bis 2250
  • Maximaler Druck (Bar): 7.5, 10, 13
Abmessungen:
  • Höhe (H): 550 mm bis 1218 mm
  • Länge (L): 850 mm bis 1925 mm
  • Breite (W): Einheitlich für alle Modelle
Gewicht: 240 kg bis 450 kg, abhängig vom Modell
Geräuschpegel: 63 dBA bis 69 dBA
Zusätzliche Optionen: Modelle mit Trockner-Luftfiltrationslösung sind verfügbar.
Empfehlungen: Die Auswahl des Modells sollte basierend auf den spezifischen Anforderungen an Leistung und Kapazität erfolgen. Die Luftanschlüsse variieren zwischen 1/2” und 3/4”.
Mehr anzeigen

Katalogauszüge

Schraubenkompressoren HGS 2-15-1

Oil-Injected Rotary Screw Air Compressors

 Katalog auf Seite 1 öffnen

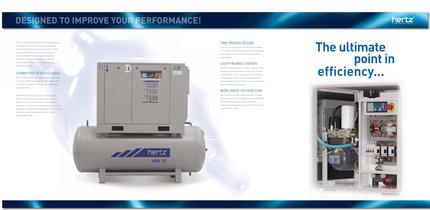

Schraubenkompressoren HGS 2-15-2

Hertz's tailored HGS Series Screw Compressors, the ideal choice for all kind of industry and applications. Every screw compressor model is equipped with an exclusive screw block, constructed with the strongest materials and each compressor ensure exceptional performance, efficiency and long lasting maintenance life. Hertz offer the most complete range of all kind of screw compressors with proven quality with the means of years of exceptional experience With time proven quality, Hertz HGS Series Rotary Screw Compressors provide highly efficiency solutions for many compressed air applications....

 Katalog auf Seite 2 öffnen
Schraubenkompressoren HGS 2-15-3

EMPOWERING PEOPLE. EMPOWERING PERFORMANCE. HGS 2-15 Tank Mounted Screw Compressors HERTZ Screw Compressors are designed to serve you trouble free, for Long Life time and each component is selected carefuLLy in accordance with this purpose. With a simplified, easy to maintain structure and with Long Life components, a troubLe-free High efficiency airends manufactured by one of the Leading airend manufacturer in the world. Our airend design is based on new rotor profile and lobe combination, which is the resuLt of Long experience of screw compressors performance, new CAD Methods and utilization...

 Katalog auf Seite 3 öffnen
Schraubenkompressoren HGS 2-15-4

OPE^MINDS. CREATING FUTUR HGS 2-15 Tank Mounted Screw Compressors CONTROL PANEL AND CUBICLE Electronic panel indicates any type of operational and service activités in the easiest way to make everybody understand perfectly. Different type safety systems provides protection for any type of risk. AIL electrical components in the cubicle are chosen from well known brands all over the Special rubber vibration pads eliminates vibration and problems it may cause. COMPACT CANOPY DESIGN • Compact machine design provides minimum working space. • Démontable canopy doors provide easy maintenance and enabLes...

 Katalog auf Seite 4 öffnen
